File Drawers using HTML & CSS
HTML
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8"> <meta name="viewport" content="width=device-width,initial-scale=1.0">
<title>File Drawers using HTML,CSS </title>
<link rel="stylesheet" href="styles.css">
</head>
<body>
<div class="chest">
<div class="chest__panel chest__panel--back"> </div>
<div class="chest__panel chest__panel--top"></div>
<div class="chest__panel chest__panel--bottom"></div>
<div class="chest__panel chest__panel--right"></div>
<div class="chest__panel chest__panel--front">
<div class="chest__panel chest__panel--front-frame"></div>
</div>
<div class="chest__panel chest__panel--left"></div>
<div class="chest__drawer drawer" data-position="1">
<details>
<summary></summary>
</details>
<div class="drawer__structure">
<div class="drawer__panel drawer__panel--back">
<span>Box1</span>
</div>
<div class="drawer__panel drawer__panel--bottom"></div>
<div class="drawer__panel drawer__panel--right"></div>
<div class="drawer__panel drawer__panel--left"></div>
<div class="drawer__panel drawer__panel--front"></div>
</div>
</div>
<div class="chest__drawer drawer" data-position="2">
<details>
<summary></summary>
</details>
<div class="drawer__structure">
<div class="drawer__panel drawer__panel--back">
<span>Box2</span>
</div>
<div class="drawer__panel drawer__panel--bottom"></div>
<div class="drawer__panel drawer__panel--right"></div>
<div class="drawer__panel drawer__panel--left"></div>
<div class="drawer__panel drawer__panel--front"></div>
</div>
</div>
<div class="chest__drawer drawer" data-position="3">
<details>
<summary></summary>
</details>
<div class="drawer__structure">
<div class="drawer__panel drawer__panel--back">
<span>Box3</span>
</div>
<div class="drawer__panel drawer__panel--bottom"></div>
<div class="drawer__panel drawer__panel--right"></div>
<div class="drawer__panel drawer__panel--left"></div>
<div class="drawer__panel drawer__panel--front"></div>
</div>
</div>
<div class="chest"></div>
</body>
</html>
CSS
*,*:after,*:before
{
box-sizing: border-box;
transform-style: preserve-3d;
will-change: transform;
}
:root
{
--bg: #bcccdc;
--hover: 0.05;
--default: 0.01;
--limit: 0.9;
--height: 30;
--width: 20;
--depth: 15;
--frame: 1;
--handle: #ccc;
--hue: 10;
--saturation: 0%;
--drawer-one: #fafafa;
--drawer-two: #e6e6e6;
--drawer-three: #f2f2f2;
--unit-one: hsl(var(--hue), var(--saturation), 50%);
--unit-two: hsl(var(--hue), var(--saturation), 40%);
--unit-three: hsl(var(--hue), var(--saturation), 20%);
--unit-four: hsl(var(--hue), var(--saturation), 15%);
--transition: 0.2s;
}
body
{
background: var(--bg);
display: grid;
place-items: center;
min-height: 100vh;
transform: scale(1.5);
}
.chest
{
height: calc(var(--height) * 1vmin);
transform: translate3d(0, 0, 50vmin) rotateX(-30deg) rotateY(30deg);
width: calc(var(--width) * 1vmin);
color: #1c1717;
}
.chest__panel
{
position: absolute;
}
.chest__panel--back
{
background: var(--unit-two);
}
.chest__panel--back,.chest__panel--front
{
height: 100%;
width: 100%;
transform: translate3d(0, 0, calc(var(--depth) * var(--coefficient)));
}
.chest__panel--front-frame
{
height: 100%;
width: 100%;
border: calc(var(--frame) * 1vmin) solid var(--unit-one);
border-bottom-width: calc(var(--frame) * 2vmin);
transform: translate3d(0, 0, 0);
}
.chest__panel--front-frame:after,.chest__panel--front-frame:before
{
content: '';
background: var(--unit-one);
height: calc(var(--frame) * 1.5vmin);
width: calc(var(--width) * 1vmin);
position: absolute;
transform: translate(-50%, -50%);
left: 50%;
}
.chest__panel--front-frame:after
{
top: calc(100 / 3 * 1.01%);
}
.chest__panel--front-frame:before
{
top: calc(100 / 3 * 2.01%);
}
.chest__panel--front
{
--coefficient: 0.5vmin;
}
.chest__panel--back
{
--coefficient: -0.5vmin;
}
.chest__panel--left,.chest__panel--right
{
height: 100%;
left: 50%;
width: calc(var(--depth) * 1vmin);
background: var(--unit-three);
transform: translate(-50%, 0) rotateY(90deg) translate3d(0, 0, calc(var(--width) * var(--coefficient)));
}
.chest__panel--right
{
width: calc((var(--depth) * 1vmin) + 2px);
--coefficient: 0.5vmin;
}
.chest__panel--left
{
--coefficient: -0.5vmin;
}
.chest__panel--top,.chest__panel--bottom
{
height: calc(var(--depth) * 1vmin);
width: calc(var(--width) * 1vmin);
background: var(--unit-two);
}
.chest__panel--top
{
top: 0;
width: calc((var(--width) * 1vmin) + 0.1vmin);
height: calc((var(--depth) * 1vmin) + 0.1vmin);
left: 50%;
transform: translate(-50%, -50%) rotateX(-90deg);
}
.chest__panel--bottom
{
bottom: 0;
transform: translate(0, 50%) rotateX(-90deg);
}
.chest__drawer
{
--drawer-height: calc((var(--height) - (5 * var(--frame))) / 3);
position: absolute;
top: var(--top, 0);
left: 50%;
height: calc(var(--drawer-height) * 1vmin);
width: calc((var(--width) - (2 * var(--frame))) * 1vmin);
transform: translate3d(-50%, 0, calc((var(--depth) * 0.5vmin) + 0.01vmin));
}
.chest__drawer[data-position="1"]
{
--index: 1;
--top: calc(var(--frame) * 1vmin);
}
.chest__drawer[data-position="2"]
{
--index: 2;
--top: calc(((2 * var(--frame)) + var(--drawer-height)) * 1vmin);
}
.chest__drawer[data-position="3"]
{
--index: 3;
--top: calc(((3 * var(--frame)) + (2 * var(--drawer-height))) * 1vmin);
}
.drawer__structure
{
height: 100%;
width: 100%;
position: absolute;
top: 0;
left: 0;
}
.drawer__panel
{
position: absolute;
}
.drawer__panel--left,.drawer__panel--right
{
width: calc(var(--depth) * 1vmin);
height: 65%;
background: var(--drawer-two);
bottom: 1%;
}
.drawer__panel--left
{
left: 0;
transform-origin: 0 50%;
transform: rotateY(90deg);
}
.drawer__panel--right
{
right: calc((var(--frame) * 1vmin) + 1px);
right: 0;
transform-origin: 100% 50%;
transform: rotateY(-90deg);
}
.drawer__panel--front
{
height: calc((var(--drawer-height) + (0.6 * var(--frame))) * 1vmin);
width: calc((var(--width) - (0.6 * var(--frame))) * 1vmin);
top: 50%;
left: 50%;
transform: translate3d(-50%, -50%, 1px);
background: var(--unit-four);
}
.drawer__panel--bottom,.drawer__panel--back
{
width: calc(100% - (2vmin * var(--frame)));
width: 100%;
}
.drawer__panel--bottom
{
height: calc(var(--depth) * 1vmin);
background: var(--drawer-three);
bottom: 5%;
left: 50%;
transform-origin: 50% 100%;
transform: translate(-50%, 0) rotateX(90deg);
}
.drawer__panel--back
{
height: 65%;
background: var(--drawer-one);
bottom: 1%;
left: 50%;
transform: translate3d(-50%, 0, calc(var(--depth) * -1vmin));
text-align: center;
line-height: calc(var(--drawer-height) * 0.65vmin);
font-size: 3vmin;
font-family: sans-serif;
font-weight: bold;
}
details
{
position: absolute;
height: 100%;
width: 100%;
top: 0;
left: 0;
cursor: pointer;
outline: transparent;
}
details:hover:not([open]),details:hover:not([open]) + .drawer__structure
{
--open: var(--hover);
}
details,.drawer__structure
{
transition: transform var(--transition);
transform: translate3d(0, 0, calc((var(--open, var(--default)) * var(--depth)) * 1vmin));
}
details[open],.drawer__structure[open],details[open] + .drawer__structure,.drawer__structure[open] + .drawer__structure
{
--open: var(--limit);
}
summary
{
outline: transparent;
height: 100%;
width: 100%;
}
summary::-webkit-details-marker
{
display: none;
}
summary:after
{
content: '';
position: absolute;
background: linear-gradient(var(--handle), var(--handle)) 50% 15%/40% 8% no-repeat, transparent;
height: 110%;
width: 110%;
top: 50%;
left: 50%;
transform: translate3d(-50%, -50%, 0.5vmin);
}
@-webkit-keyframes wave
{
0%, 100% {
transform: translate3d(0, 10%, 1px);
}
50% {
transform: translate3d(0, -10%, 1px);
}
}
@keyframes wave
{
0%, 100% {
transform: translate3d(0, 10%, 1px);
}
50% {
transform: translate3d(0, -10%, 1px);
}
}

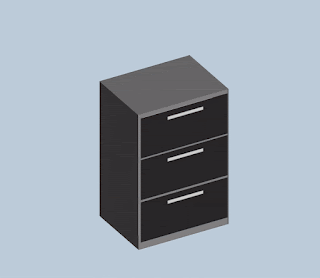

Output:
